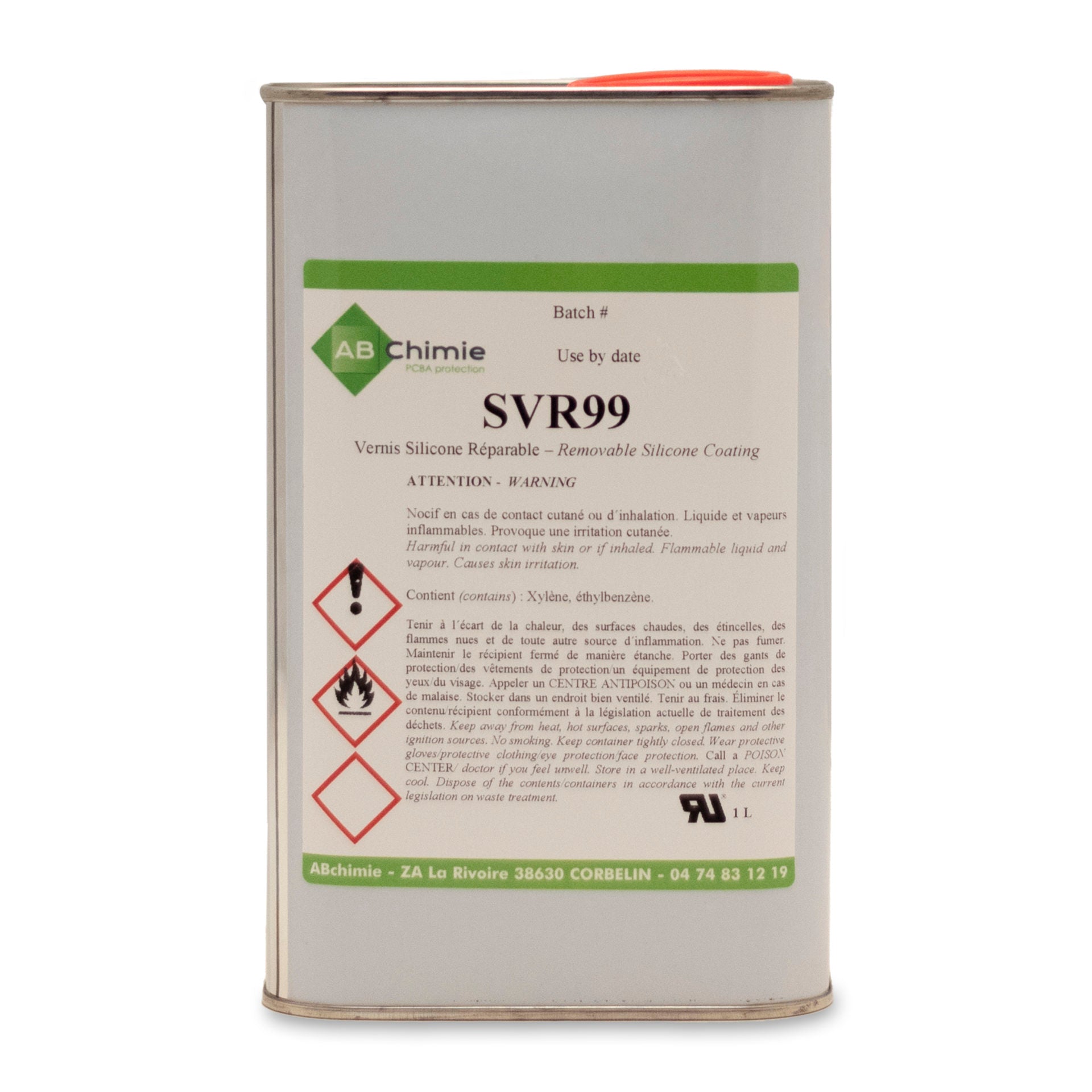

ABChimie SVR99
ABChimie SVR99
SVR99 is a silicone varnish developed for the protection of printed circuit boards subjected to
Very humid environments. It is a so-called "repairable" varnish that is easily removed with ABchimie's SND solvent.
SVR99 clearcoat can be applied by spraying, dipping, brushing, or with a selective deposition machine. DVS thinner is available to provide the desired viscosity.
appropriate for your application.
The SVR99 varnish contains a fluorescent tracer that ensures proper application.
The varnish application facilitates circuit inspection. The stronger the fluorescence, the thicker the varnish layer.
FEATURES
• Good adhesion in very humid environments.
• Excellent surface resistivity.
• Excellent resistance to mold in tropical conditions and light
ultraviolet.
• Effective over a wide temperature range.
• Good dielectric properties
• Repairable - easily weldable without risk of toxic gas emissions. Removable
easily with SND solvent.
• The recommended varnish thickness is 25 to 50 microns.
• Heat-sealable
• UL QMJU2 approval (File E308861)
